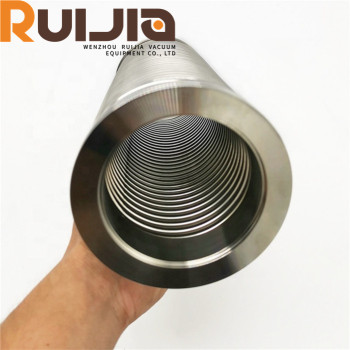

KF vacuum Compressible bellows NW vacuum Flexible Hoses KF16-KF100

group name: KF Vacuum Bellows

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 20 Nov 2024 20:28:37 GMT

contact supplier

Paramtents

Standard KF / CF / ISO flange type
KF Vacuum Bellows Material SUS304, SUS316L
Wall Thickness 0.15mm,0.2mm,0.25mm
Temperature -200~800℃
Elasticity of bellows 40%

Packging & Delivery

Min Order1 piece

Briefing

vacuum Compressible bellow Material: SUS304,SUS316L,
Vacuum Bellows,Vacuum Flexible hose bellows standard: KF/NW,
Elasticity of bellows:40%, used in high vacuum systems.

Detailed

KF/NW Vacuum Compressible Bellows feature

Ruijia vacuum flexible hoses range consists of lots of different type of flexible metal hoses, such as KF / CF / ISO flange type , Braided cover and One Flange Rotatable. KF Vacuum bellows has been used in many ways vacuum, pressure, and fluid transport plumbing by Molding method, and bone geometry, material, and material thickness, etc depending on the environment.

● Soft, flexible, easy to bend, vibration absorbing

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●Delicate Welding to ensure integrity and reliability

Stainless Steel KF/NW Vacuum Bellows specifications

Bellows Type	KF Vacuum Compressible Bellows
Material	Bellows SUS304, SUS316L
Material	Flange SUS304, SUS316L
Standard	KF / CF / ISO flange type
Size Range	KF16-KF100,ISO63-ISO320, CF16,CF35,CF63,CF100
Length	250mm,500mm,750mm,1000mm,1500mm,2000mm,3000mm or as customer request
Wall Thickness	0.15mm,0.2mm,0.25mm
Elasticity of bellows	40%
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Leakage rate	1×10 -9 Pa・m³/sec or less

KF/NW Vacuum Compressible Bellows Product parameters

					Unit:mm
Item No.	Flange Size	Material	A	B	C
KF16FXC100	NW16	SS304	30	100	80
KF25FXC100	NW25	SS304	40	100	80
KF40FXC100	NW40	SS304	55	100	80
KF50FXC100	NW50	SS304	75	100	80
KF63FXC100	NW63	SS304	95	100	80
KF80FXC100	NW80	SS304	110	100	80
KF100FXC100	NW100	SS304	130	100	80
**Material SS316, Teflon & Customized Length Upon Request
