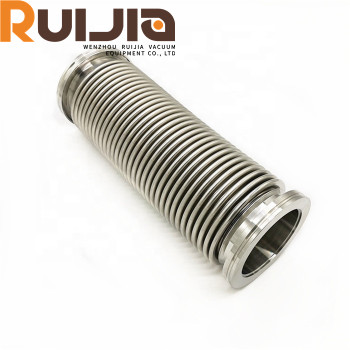

ISO Vacuum flexible hoses Vacuum Bellows | Connection Iso63-Is0100 SS304/316L

group name: ISO-K Vacuum Bellows

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 20 Nov 2024 20:33:27 GMT

contact supplier

Paramtents

ISO Compressible Bellows Type Vacuum ISO flexible hoses
ISO Compressible Bellows Standard ISO
Size Range ISO63-ISO100
Wall Thickness 0.2mm,0.25mm,0.3mm

Packging & Delivery

Min Order1 piece

Briefing

ISO Bellows,Vacuum Bellows,ISO Flexible Hoses,material:Bellows SUS304,SUS316L.Wall Thickness:0.2mm,0.25mm,0.3mm.Elasticity of bellow:40%,Temperature:-200-800℃.working pressure:vacuum atmosphere pressure.

Detailed

ISO Compressible bellows vacuum bellows connection ISO63-IS0100 SS304/316L feature

ISO Compressible Bellows Advantage

● Soft, flexible, easy to bend, vibration absorbing

● Helium leakage test passed before shipping

● A plastic flange protective cap is included to avoid flange scratching during transportation

●Delicate Welding to ensure integrity and reliability

ISO Compressible Bellows ISO63-IS0100 SS304 specifications

Bellows Type	Vacuum ISO flexible hoses
Material	Bellows SUS304, SUS316L
Material	Flange SUS304, SUS316L
Standard	ISO
Size Range	ISO63-ISO100
Length	250mm,500mm,750mm,1000mm or as customer request
Wall Thickness	0.2mm,0.25mm,0.3mm
Elasticity of bellows	40%
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Leakage rate	1×10 -9 Pa・m³/sec or less

ISO Compressible Bellows Product parameters

ISO Flexible Hoses , ISO Compressible Bellows

				Unit:mm
Item No.	Flange Size	Material	A	B
ISO63FX250	ISO63	SS304	95	250
ISO63FX500	ISO63	SS304	95	500
ISO63FX750	ISO63	SS304	95	750
ISO63FX1000	ISO63	SS304	95	1000
ISO63FX3000	ISO63	SS304	95	3000

ISO80FX250	ISO80	SS304	110	250
ISO80FX500	ISO80	SS304	110	500
ISO80FX750	ISO80	SS304	110	750
ISO80FX1000	ISO80	SS304	110	1000
ISO80FX3000	ISO80	SS304	110	3000

ISO100FX250	ISO100	SS304	130	250
ISO100FX500	ISO100	SS304	130	500
ISO100FX750	ISO100	SS304	130	750
ISO100FX1000	ISO100	SS304	130	1000
ISO100FX3000	ISO100	SS304	130	3000
**Material SS316,Customized length is acceptable upon request. ISO160-ISO320 is unpon request.
Inner hose PTFE coating upon request.
