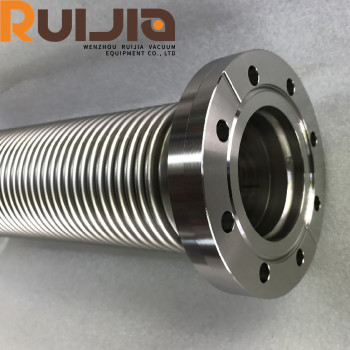

CF Compressible Bellows Connections-One Flange Rotatable CF vacuum bellows CF16-CF100 SS304/316L
- group name
- CF Vacuum Bellows
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 13 Nov 2024 09:29:04 GMT
Paramtents
Bellows Type Vacuum CF Compressible Bellows Connections-One Fla
Standard CF Flange connection
Size Range CF16,CF35,CF63,CF100
Wall Thickness 0.2mm,0.25mm,0.3mm
Temperature -200~800℃
Packging & Delivery
-
Min Order1 piece
Briefing
KF Vacuum bellows has been used in many ways vacuum, pressure, and fluid transport plumbing by Molding method, and bone geometry, material, and material thickness, etc depending on the environment.
Detailed
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L feature
advantage
● Soft, flexible, easy to bend, vibration absorbing
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Delicate Welding to ensure integrity and reliability
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L specifications
| Bellows Type | Vacuum CF Compressible Bellows Connections-One Flange Rotatable |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | CF Flange connection |
| Size Range | CF16,CF35,CF63,CF100 |
| Length | 150mm,180mm,250mm,270mm or as customer request |
| Wall Thickness | 0.2mm,0.25mm,0.3mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
Product parameters
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L
| Unit:mm | |||||
| Item No. | Flange Size | Material | A | B | C |
| CF16FXC150R | CF16 | SS304 | 33.8 | 150 | 130 |
| CF35FXC180R | CF35 | SS304 | 69.5 | 180 | 160 |
| CF63FXC210R | CF63 | SS304 | 113.6 | 210 | 190 |
| CF100FXC270R | CF100 | SS304 | 151.6 | 270 | 250 |
| **Material SS316,Customized length is acceptable upon request.. | |||||
