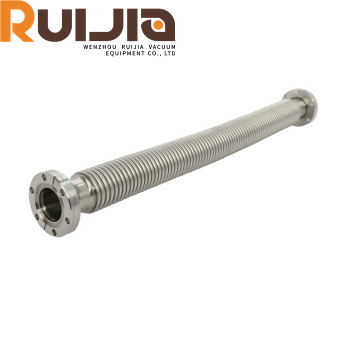

CF Vacuum Flexible Hoses vacuum bellows-One Flange Rotatable CF16-CF100 SS304/316L
- group name
- CF Vacuum Bellows
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- model
- CF Vacuum Flexible Hoses
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 20 Nov 2024 20:32:33 GMT
Paramtents
Bellows Type Vacuum CF Flexible Hoses-One Flange Rotatablee
Standard CF Flange connection
Size Range CF16,CF35,CF63,CF100
Wall Thickness 0.2mm,0.25mm,0.3mm
Leakage rate 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
Ruijia vacuum flexible hoses bellows range consists of lots of different type of flexible metal hoses, such as KF / CF / ISO flange type , material in SS304, or SS316L Braided cover and One Flange Rotatable.
Detailed
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L feature
CF Vacuum Flexible Hoses advantage
● Soft, flexible, easy to bend, vibration absorbing
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Delicate Welding to ensure integrity and reliability
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L specifications
| Bellows Type | Vacuum CF Flexible Hoses-One Flange Rotatablee |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | CF Flange connection |
| Size Range | CF16,CF35,CF63,CF100 |
| Length | 150mm,180mm,250mm,270mm or as customer request |
| Wall Thickness | 0.2mm,0.25mm,0.3mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
CF Vacuum Flexible Hoses Product parameters
CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L
| Unit:mm | ||||
| Item No. | Flange Size | Material | A | B |
| CF16FX250R | CF16 | SS304 | 33.8 | 250 |
| CF16FX500R | CF16 | SS304 | 33.8 | 500 |
| CF16FX750R | CF16 | SS304 | 33.8 | 750 |
| CF16FX1000R | CF16 | SS304 | 33.8 | 1000 |
| CF35FX250R | CF35 | SS304 | 69.5 | 250 |
| CF35FX500R | CF35 | SS304 | 69.5 | 500 |
| CF35FX750R | CF35 | SS304 | 69.5 | 750 |
| CF35FX1000R | CF35 | SS304 | 69.5 | 1000 |
| CF63FX250R | CF63 | SS304 | 113.6 | 250 |
| CF63FX500R | CF63 | SS304 | 113.6 | 500 |
| CF63FX750R | CF63 | SS304 | 113.6 | 750 |
| CF63FX1000R | CF63 | SS304 | 113.6 | 1000 |
| CF100FX250R | CF100 | SS304 | 151.6 | 250 |
| CF100FX500R | CF100 | SS304 | 151.6 | 500 |
| CF100FX750R | CF100 | SS304 | 151.6 | 750 |
| CF100FX1000R | CF100 | SS304 | 151.6 | 1000 |
| **Material SS316,Customized length is acceptable upon request. CF160-CF320 is upon request. | ||||
