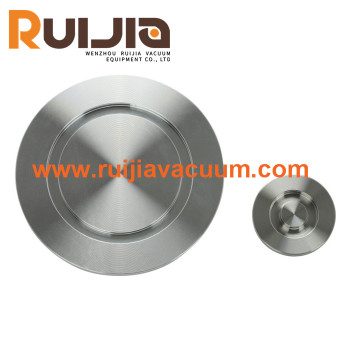

KF(NW) Vacuum blanking flange | Stainless Steel KF/NW Vacuum blank flanges KF16-KF50
- group name
- KF/NW Vacuum Flanges
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 13 Nov 2024 09:33:13 GMT
Paramtents
Product Name KF(NW) Vacuum blanking flange
Standard KF,ISO,CF Standard
Size KF16,KF25,KF40,KF50,KF63,KF80,KF100,KF160
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
Ruijia High Vacuum Blank Flanges including KF/NW vacuum blank flange,bored flange, ISO vacuum blank flange and CF blank flange. Along with the ancillary components they offer a simple solution for applications requiring easy and repeated assembly.
Detailed
KF(NW) Vacuum blanking flange feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
KF(NW) Vacuum blanking flange specifications
| Product Name | KF(NW) Vacuum blanking flange |
| Brand | RUIJIA |
| Size | KF16,KF25,KF40,KF50,KF63,KF80,KF100,KF160 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | KF,ISO,CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum flange types | KF blank flange,KF bored flange, KF socket weld flange, KF half nipple(short), KF half nipple(long) |
Product parameters
KF Vacuum Blank Flange
KF Blank Flange
| KF Blank Flange | ||||
| Model No. | Material | A | B | C |
| KF10BF | SS304 | 30 | 12.2 | 5 |
| KF16BF | SS304 | 30 | 17.2 | 5 |
| KF25BF | SS304 | 40 | 26.2 | 5 |
| KF40BF | SS304 | 55 | 41.2 | 5 |
| KF50BF | SS304 | 75 | 52.2 | 5 |
| KF63BF | SS304 | 87 | 70 | 5 |
| KF80BF | SS304 | 114 | 83 | 12 |
| KF100BF | SS304 | 134 | 102 | 12 |
| KF160BF | SS304 | 190 | 153 | 12 |
| **SS316, Aluminum is upon request | ||||
