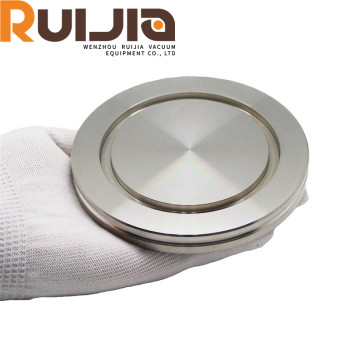

Vacuum Flanges ISO vacuum blank flange ISO63-ISO500

group name: ISO-K Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 13 Nov 2024 09:37:56 GMT

contact supplier

Paramtents

Product Name Vacuum Flanges ISO vacuum blank flange ISO63-ISO50
Standard KF,ISO,CF Standard
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

ISO vacuum blank flanges,centering rings and seals assemblies are offered with an aluminum centering ring and a space ring, or with a stainless centring ring and an aluminium space ring.

Detailed

ISO vacuum flange feature

advantage

● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

ISO vacuum flange specifications

Product Name	Vacuum Flanges ISO vacuum blank flange ISO63-ISO500
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

Product parameters

ISO Vacuum Blank Flange

					Unit:mm
Model No.	Material	A	B	C	D
ISO63B	SS304	95	70	12	90
ISO80B	SS304	110	83	12	105
ISO100B	SS304	130	102	12	125
ISO160B	SS304	180	153	12	175
ISO200B	SS304	240	213	12	235
ISO250B	SS304	290	261	12	285
ISO320B	SS304	370	318	17	365
ISO400B	SS304	450	400	17	445
ISO500B	SS304	550	501	17	545
**SS316, Aluminum is upon request
