Product Name ISO vacuum bored flange ISO63-ISO500
Standard KF,ISO,CF Standard
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

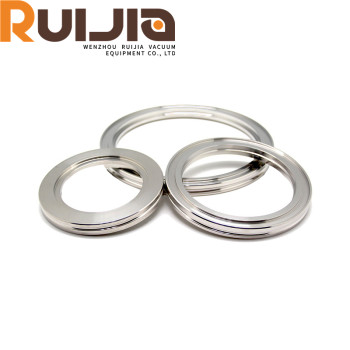

ISO vacuum bored flanges are made out of 304/316L stainless steel, It is used to close off the open part where not required, with size range from ISO63-ISO500 vacuum blank flanges.

Detailed

ISO Bored flange vacuum feature

advantage

● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

ISO Bored flange vacuum specifications

Product Name	ISO vacuum bored flange ISO63-ISO500
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

Product parameters

ISO Vacuum Bored Flange

						Unit:mm
Model No.	Material	A	B	C	D	E
ISO63B63	SS304	95	70	12	90	63.7
ISO80B76	SS304	110	83	12	105	76.8
ISO100B102	SS304	130	102	12	125	102.2
ISO160B153	SS304	180	153	12	175	152.9
ISO200B204	SS304	240	213	12	235	203.7
ISO250B255	SS304	290	261	12	285	254.5
ISO320B305	SS304	370	318	17	365	305.3
ISO400B407	SS304	450	400	17	445	406.9
ISO500B509	SS304	550	501	17	545	508.8
**SS316, Aluminum is upon request
