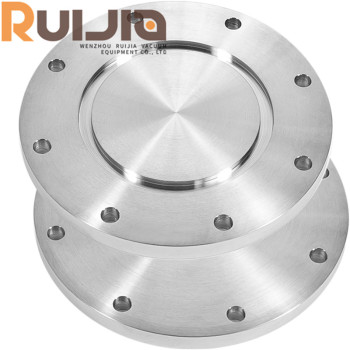

China Sus304 316 Vacuum ISO Bolted Blank flange vacuum flanges ISO63-ISO630

group name: ISO-K Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 13 Nov 2024 09:45:25 GMT

contact supplier

Paramtents

Product Name ISO vacuum bored blank flange are made of type 304
Standard KF,ISO,CF Standard
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

ISO vacuum bored blank flange are made of type 304/316L stainless steel, centering ring and seal assemblies are offered with a stainless centring ring and an aluminium retainer ring.

Detailed

ISO bolted blank flange feature

advantage

● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

ISO bolted blank flange specifications

Product Name	ISO bolted blank flange ISO63-ISO630
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

Product parameters

ISO bolted blank flange

Unit:mm
Model No.	Material	A	B	C	E*No	P.C.D.
ISO63BB	SS304	130	70	12	9*4	110
ISO80BB	SS304	145	83	12	9*8	125
ISO100BB	SS304	165	102	12	9*8	145
ISO160BB	SS304	225	153	16	11*8	200
ISO200BB	SS304	285	213	16	11*12	260
ISO250BB	SS304	335	261	16	11*12	310
ISO320BB	SS304	425	318	20	14*12	395
ISO400BB	SS304	510	400	20	14*16	480
ISO500BB	SS304	610	501	20	14*16	580
ISO630BB	SS304	750	651	24	14*20	720
**SS316, Aluminum is upon request
