China Sus304 316 ISO-BF Bolted flange Vacuum ISO flanges ISO63-ISO630

group name: ISO-K Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 13 Nov 2024 09:50:55 GMT

contact supplier

Paramtents

Product Name ISO-BF vacuum bolted flange ISO63-ISO630
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

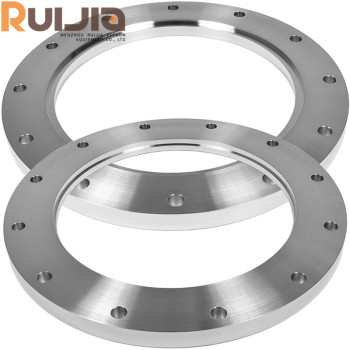

ISO-BF bolted flanges,stainless steel,size ranges:NW63-NW630 and used in a bore for standard inch tube and piping diameters, or a blank-off to close a port.

Detailed

ISO-BF Bolted Vacuum Flange feature

advantage

● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.

ISO bolted blank flange specifications

Product Name	ISO-BF vacuum bolted flange ISO63-ISO630
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	ISO Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum flange types	ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short)

Product parameters

ISO-BF Bolted Vacuum Flange

Model No.	Material	A	B	C	D	E*No	P.C.D.
ISO63BF	SS304	130	70	12	63.7	9*4	110
ISO80BF	SS304	145	83	12	76.8	9*8	125
ISO100BF	SS304	165	102	12	102.2	9*8	145
ISO160BF	SS304	225	153	16	152.9	11*8	200
ISO200BF	SS304	285	213	16	203.7	11*12	260
ISO250BF	SS304	335	261	16	254.5	11*12	310
ISO320BF	SS304	425	318	20	305.3	14*12	395
ISO400BF	SS304	510	400	20	406.9	14*16	480
ISO500BF	SS304	610	501	20	508.8	14*16	580
ISO630BF	SS304	750	651	24	610.4	14*20	720
