Vacuum ISO flange Rotatable Bolt Ring China ISO63-ISO500
- group name
- ISO-K Vacuum Flanges
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 13 Nov 2024 10:03:25 GMT
Paramtents

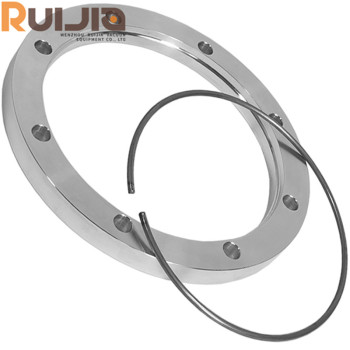

Product Name ISO Rotatable Bolt Ring ISO63-ISO500
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
ISO Flange bolt rings,ISO-BF rotatable bolt rings feature :Retain rotatable bolt rings,Stainless Steel construction,NW63 to NW500 flange sizes and used in a bore for standard inch tube and piping diameters.
Detailed
ISO Rotatable Bolt Ring feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO Rotatable Bolt Ring specifications
| Product Name | ISO Rotatable Bolt Ring ISO63-ISO500 |
| Brand | RUIJIA |
| Size | ISO63-ISO500 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | ISO Standard flange |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
Product parameters
ISO Rotatable Bolt Ring
| Model No. | Material | A | B | C | D*No | P.C.D. |
| ISO63RBR | SS304 | 130 | 98.5 | 12 | 9*4 | 110 |
| ISO80RBR | SS304 | 145 | 113.5 | 12 | 9*8 | 125 |
| ISO100RBR | SS304 | 165 | 133.5 | 12 | 9*8 | 145 |
| ISO160RBR | SS304 | 225 | 185.7 | 16 | 11*8 | 200 |
| ISO200RBR | SS304 | 285 | 245.7 | 16 | 11*12 | 260 |
| ISO250RBR | SS304 | 335 | 295.7 | 16 | 11*12 | 310 |
| ISO320RBR | SS304 | 425 | 375.8 | 20 | 14*12 | 395 |
| ISO400RBR | SS304 | 510 | 458.8 | 20 | 14*16 | 480 |
| ISO500RBR | SS304 | 610 | 558.8 | 20 | 14*16 | 580 |
