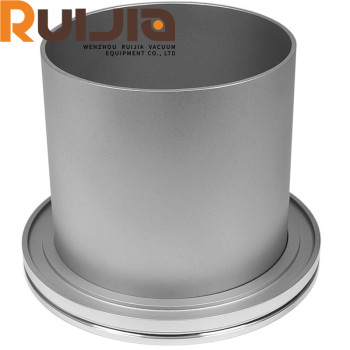

ISO-LF Half nipple Vacuum ISO nipple flanges China

group name: ISO-K Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 10:54:00 GMT

contact supplier

Paramtents

Product Name ISO-LF HALF NIPPLE ISO NIPPLES
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Nipple,half,ISO,material:SS304/SS316,Sizes:ISO63-ISO500.ISO half nipples seal material:Viton,silicone, Vacuum half nipples application:high vacuum system.

Detailed

ISO-LF Half Nipple feature

advantage

ISO NIPPLES Features:

*High Vacuum Rated to 1×10-8 Torr

*Compatible with all ISO standard vacuum flanges and fittings

*Quick sealing and disassembly

*Custom lengths

*ISO-QF large size flanges

ISO-LF Half Nipple specifications

Product Name	ISO-LF HALF NIPPLE ISO NIPPLES
Brand	RUIJIA
Size	ISO63-ISO500
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	ISO Standard flange
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

Product parameters

ISO-LF Half Nipple

Model No.	Material	A	B	C
ISO63HN	SS304	95	63.5	100
ISO80HN	SS304	110	76.2	100
ISO100HN	SS304	130	101.6	100
ISO160HN	SS304	180	152.4	100
ISO200HN	SS304	240	203.2	100
ISO250HN	SS304	290	254	100
ISO320HN	SS304	370	304.8	100
ISO400HN	SS304	450	406.8	100
ISO500HN	SS304	550	508	100
*Part number plus "K" for sand blasting surface
*Part number plus "L" for polished surface
