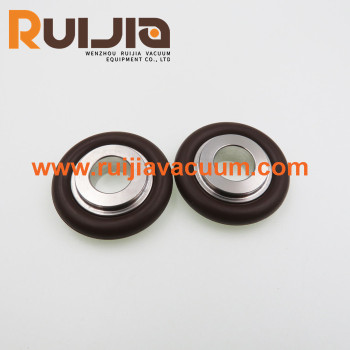

KF Vacuum Centering Ring Adapter & O'ring

group name: KF Centering Rings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 15:24:32 GMT

contact supplier

Paramtents

Product Name KF Vacuum centering ring adapter & O’ring
Standard CF Standard
Seal material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

KF centering rings,KF vacuum centering ring & o'ring is an essentialcomponent in vacuum systems,centering rings size ranges:KF16-KF40.Working Pressure:Vacuum~atmosphere pressure.

Detailed

Vacuum Centering Ring Adapter & O'ring feature

advantage

●used in vacuum systems or laboratory equipment to ensure a secure and leak-proof connection between two parts.

● vacuum centering ring adapter and O-ring is an essential component in vacuum systems, particularly when working with KF connectors.

● It typically includes a centering ring which helps align the components correctly, ensuring a snug fit and reducing the risk of misalignment.

Vacuum Centering Ring Adapter & O'ring specifications

Product Name	KF Vacuum centering ring adapter & O’ring
Brand	RUIJIA
Size	KF16,KF25,KF40.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum Centering Ring types	KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring adaptor & O’ring, KF centering ring with outing ring

Vacuum Centering Ring Adapter & O'ring parameter

KF Centering Ring Adapter & O’Ring Unit: mm

Model No.	Material C/R	Material O'Ring	A	B	C	D	E	F	O'ring Size
KF16CR16VS	304 S.S./316S.S	Viton/NBR	10	12	16	17	8	3.9	AS-314
KF20CR25VS	304 S.S./316S.S	Viton/NBR	20	22	25	26	8	3.9	AS-320
KF32CR40VS	304 S.S./316S.S	Viton/NBR	32	34	40	41	8	3.9	AS-326

*O'Ring color for NBR material is black, brown is available upon request.

*O'Ring color for Viton material is brown, black is available upon request.
