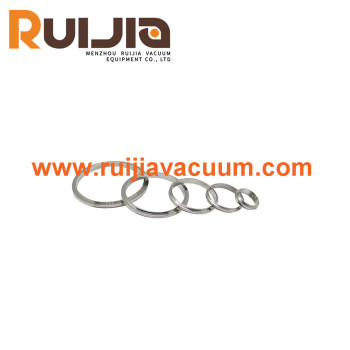

Stainless Steel KF Vacuum Centering Ring KF10-50
- group name
- KF Centering Rings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 12 Nov 2024 15:19:50 GMT
Paramtents
Product Name KF Vacuum centering ring
Standard KF Standard
Seal material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
Vacuum centering rings,KF,stainless steel,size range:KF10-KF50.As component to mating the KF flanges,KF centering ring is used in high vacuum plumbing systems.
Detailed
Stainless Steel KF Vacuum Centering Ring KF10-50 feature
advantage
●Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
● This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel, aluminium EN1.4301, EN1.4404
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
Stainless Steel KF Vacuum Centering Ring KF10-50 specifications
| Product Name | KF Vacuum centering ring |
| Brand | RUIJIA |
| Size | KF10,KF16,KF25,KF40,KF50 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum Centering Ring types | KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring & O’ring, KF centering ring with outing ring |
Stainless Steel KF Vacuum Centering Ring KF10-50 parameter
KF Centering Ring Unit: mm
| Model No. | Material C/R | A | B | C | D |
| KF1OCRS | 304 S.S | 10 | 12 | 8 | 3.9 |
| KF16CRS | 304 S.S | 16 | 17 | 8 | 3.9 |
| KF25CRS | 304 S.S | 25 | 26 | 8 | 3.9 |
| KF40CRS | 304 S.S | 40 | 41 | 8 | 3.9 |
| KF50CRS | 304 S.S | 50 | 52 | 8 | 3.9 |
| KF1OCRA | AL | 10 | 12 | 8 | 3.9 |
| KF16CRA | AL | 16 | 17 | 8 | 3.9 |
| KF25CRA | AL | 25 | 26 | 8 | 3.9 |
| KF40CRA | AL | 40 | 41 | 8 | 3.9 |
| KF50CRA | AL | 50 | 52 | 8 | 3.9 |
*O'Ring color for NBR material is black, brown is available upon request.
*O'Ring color for Viton material is brown, black is available upon request.
