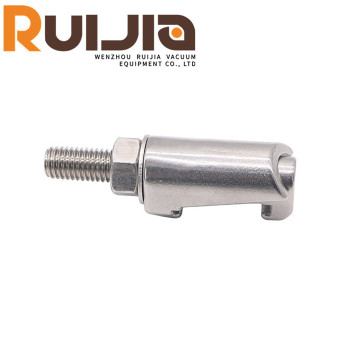

ISO Vacuum Double Claw Clamp 316L.S.S

group name: ISO-K Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 15:11:09 GMT

contact supplier

Paramtents

Product Name ISO Vacuum double claw clamps
Size ISO63-250,ISO320-500,ISO630
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum double claw clamps, ISO vacuum clamps is designed for use in semiconductor, pharmaceutical, and food industries. size range:ISO63-ISO630.

Detailed

ISO Vacuum Double Claw Clamp 316L.S.S feature

●used in semiconductor manufacturing, national defense research etc.

● Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

● The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

ISO Vacuum Double Claw Clamp 316L.S.S specifications

Product Name	ISO Vacuum double claw clamps
Brand	RUIJIA
Size	ISO63-250,ISO320-500,ISO630
Material	SS304, SS316L,Steel+Zn Plated
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum clamp types	ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.

ISO Vacuum Double Claw Clamp 316L.S.S parameters

ISO Vacuum double claw clamps Unit:mm

Model No.	Material	A	B	Min.Quantity	Fit Flange
ISO63-250DCC316	316S.S	61.5	M10	4	ISO63
				4	ISO80
				4	ISO100
				4	ISO160
				6	ISO200
				6	ISO250
ISO320-500DCC316	316S.S	76	M12	8	ISO320
				8	ISO400
				12	ISO500
ISO630DCC316	316S.S	86	M12	12	ISO630
ISO63-250DCC-ZP	Steel+Zn Plated	61.5	M10	4	ISO63
				4	ISO80
				4	ISO100
				4	ISO160
				6	ISO200
				6	ISO250
ISO320-500DCC-ZP	Steel+Zn Plated	76	M12	8	ISO320
				8	ISO400
				12	ISO500
ISO630DCC-ZP	Steel+Zn Plated	86	M12	12	ISO630

ISO Vacuum Double Claw Clamp 316L.S.S detail

Production Center

Packing & Shipping

Application
