KF Vacuum Flange Bulkhead Clamp

group name: KF Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 15:04:43 GMT

contact supplier

Paramtents

Product Name KF Vacuum Flange bulkhead clamp
Size NW16,NW25,NW40,NW50
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Bulkhead clamps,KF type,stainless steel,KF Vacuum Bulkhead Clamp is a device used in vacuum technology to secure vacuum lines or fittings to a surface, typically a vacuum chamber or bulkhead.

Detailed

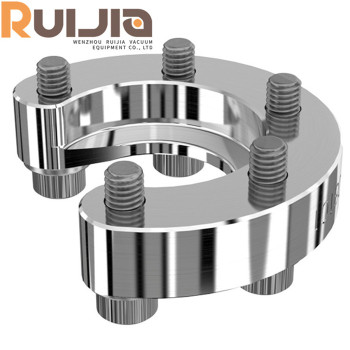

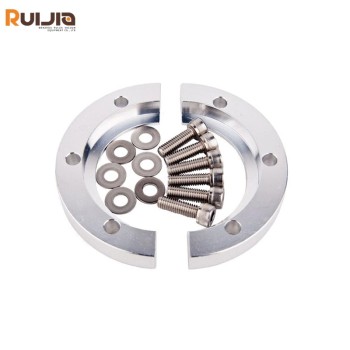

KF Vacuum Flange Bulkhead Clamp feature

advantage

●Used in high-tech industries such as semiconductor manufacturing, national defense research, aerospace, bio pharmaceuticals, LCD, photovoltaic solar energy, etc.

● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.

●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards

KF Vacuum Flange Bulkhead Clamp specifications

Product Name	KF Vacuum Flange bulkhead clamp
Brand	RUIJIA
Size	NW16,NW25,NW40,NW50
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF(NW)Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

KF Vacuum Flange Bulkhead Clamp parameters

KF Vacuum Flange bulkhead clamp Unit:mm

Model No.	Material	A	B	C	D	Bolt Size*No
NW-16-BCP	A6061-T6	50.8	38.1	9.17	22.86	#10-32×5/8" L*6
NW-25-BCP	A6061-T6	60.2	48.01	9.83	32	#10-32×5/8" L*6
NW-40-BCP	A6061-T6	74.68	61.98	9.3	46.22	#10-32×5/8" L*6
NW-50-BCP	A6061-T6	95.25	82.6	10.26	59.69	#10-32×5/8" L*8
NW-16-BCP-M	A6061-T6	50.8	38.1	9.17	22.86	M5×16L*6
NW-25-BCP-M	A6061-T6	60.2	48.01	9.83	32	M5×16L*6
NW-40-BCP-M	A6061-T6	74.68	61.98	9.3	46.22	M5×16L*6
NW-50-BCP-M	A6061-T6	95.25	82.6	10.26	59.69	M5×16L*6

*O'Ring color for NBR material is black, brown is available upon request.

*O'Ring color for Viton material is brown, black is available upon request.
