KF Vacuum Chain Clamp KF16-KF63 with Hand Knob SS304

group name: KF Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 19 Feb 2025 14:19:58 GMT

contact supplier

Paramtents

Product Name KF Vacuum chain clamp KF16-KF63
Size KF10,KF25,KF40,KF50,KF63
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

KF flanges fittings clamp, KF clamps fittings is made of SS304/SS316.size range:KF16-KF50.Working Pressure:Vacuum~atmosphere pressure.

Detailed

KF Vacuum Chain Clamp KF16-KF63 with hand Knob SS304 feature

advantage

●Used in high-tech industries such as semiconductor manufacturing,national defense research,aerospace,bio pharmaceutical,LCD,etc

●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

●The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 specifications

Product Name	KF Vacuum flange chain clamp KF16-KF63
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50,KF63
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 parameters

KF Vacuum flange chain clamp KF16-KF63 Unit:mm

Model No.	Flange size	Material	A	B	T
CC-K-16	KF10/16	Block Aluminum	22	56	20.3
CC-K-25	KF25	Block Aluminum	32	66	20.3
CC-K-40	KF40	Block Aluminum	46	80	20.3
CC-K-50	KF50	Block Aluminum	69	100	20.3
CC-K-63	KF63	Block Aluminum	78	112	20.3

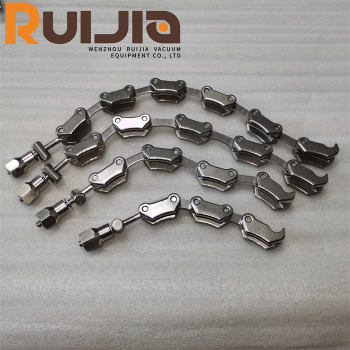

KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 detail

Production Center

Packing & Shipping

Application
