CF Vacuum 4 way crosses-Fixed China
- group name
- CF Vacuum Fittings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 12 Nov 2024 14:48:49 GMT
Paramtents

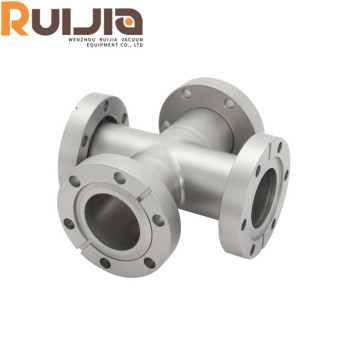

Product Name CF Vacuum 4 way Crosses fixed
Size CF16,CF35,CF63,CF100,CF150
Seal material Oxygen free copper, silver plated copper
Material SS304, SS316L
Packging & Delivery
-
Min Order1 piece
Briefing
Vacuum fittings,4 way crosses, fixed,is made of stainless steel,size range:CF16-CF150.Vacuum fittings is applied in laboratory equipment, and other fields.
Detailed
CF Vacuum 4 Way Crosses feature
advantage
●This type of accessory has a wide range of applications, including but not limited to scientific research, industrial production, laboratory equipment, and other fields.
●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation
●Testing:Appearance inspection, size inspection, sealing performance testing
CF Vacuum 4 Way Crosses specifications
| Product Name | CF Vacuum 4 way Crosses fixed |
| Brand | RUIJIA |
| Size | CF16,CF35,CF63,CF100,CF150 |
| Material | SS304, SS316L |
| Seal material | Oxygen free copper, silver plated copper |
| Standard | CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| CF flange fittings types | CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread. |
CF Vacuum 4 Way Crosses parameters
CF Vacuum 4 way Crosses fixed Unit:mm
| Model No. | Material | A | B | C | D |
| CF16X | 304S.S | 37.5 | 19.05 | 33.8 | 75 |
| CF35X | 304S.S | 62.5 | 38.1 | 69.5 | 125 |
| CF63X | 304S.S | 85.7 | 63.5 | 113.6 | 171.4 |
| CF100X | 304S.S | 109.5 | 101.6 | 151.6 | 219 |
| CF150X | 304S.S | 139.7 | 152.4 | 202.5 | 279.4 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
CF Vacuum 4 Way Crosses detail
Production Center
Packing & Shipping
Application
