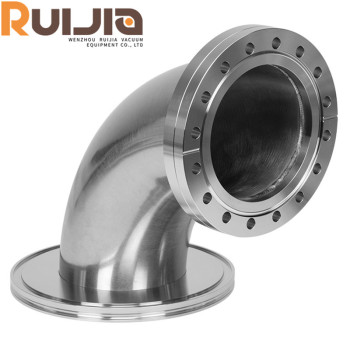

Conflat Vacuum Flange Fittings 90°Elbows Fixed

group name: CF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:44:41 GMT

contact supplier

Paramtents

Product Name CF Vacuum flange fittings 90 degree Elbow fixed
Size CF16,CF35,CF63,CF100,CF150,CF200,CF250
Seal material Oxygen free copper, silver plated copper
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

CF 90 degree elbows is particularly useful in creating efficient and compact configurations for UHV systems. They are typically made from materials such as SS304 which offer good corrosion resistance and durability in vacuum environments.

Detailed

CF Vacuum flange fittings feature

advantage

●Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees

● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

●Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.

Specification

CF Vacuum flange fittings specifications

Product Name	CF Vacuum flange fittings 90 degree Elbow fixed
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

CF Vacuum flange fittings parameters

CF Vacuum flange fittings 90 degree Elbow fixed Unit:mm

Model No.	Material	A	B	C
CF16EL90	304S.S	37.5	19.05	33.8
CF35EL90	304S.S	79.9	38.1	69.5
CF63EL90	304S.S	141.3	63.5	113.6
CF100EL90	304S.S	222.2	101.6	151.6
CF150EL90	304S.S	241.3	152.4	202.5
CF200EL90	304S.S	215.9	219.08	253.2
CF250EL90	304S.S	266.7	273.05	336.5

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.

CF Vacuum flange fittings detail
