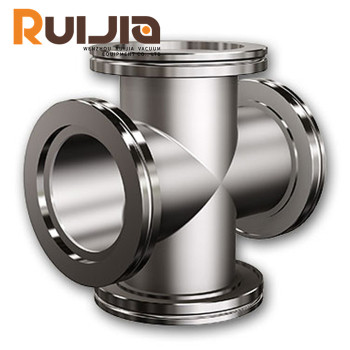

ISO Vacuum flange fittings 4 way crosses

group name: ISO-K Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:38:08 GMT

contact supplier

Paramtents

Product Name ISO Vacuum flange fittings 4 way crosses
Size ISO63,ISO80,ISO100,ISO160
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

ISO vacuum fittings,Vacuum fittings crosses are used in scientific research, semiconductor manufacturing, a series of strict tests are conducted to ensure the quality and reliability of the tees.

Detailed

CF Vacuum Cubes With Metric Thread feature

advantage

●Application ：application areas include but are not limited to scientific research, semiconductor manufacturing, and other industrial fields that require high purity and high vacuum.

● Packaging methods: including bubble wrap packaging, anti-static packaging bags, and customized wooden or metal protective boxes.

●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.

CF Vacuum Cubes With Metric Thread specifications

Product Name	ISO Vacuum flange fittings 4 way crosses
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO flange fittings types	ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.

CF Vacuum Cubes With Metric Thread parameters

ISO Vacuum flange fittings 4 way crosses Unit:mm

Model No.	Material	A	B	C	D
ISO63XA	304S.S	82.8	63.5	95	165.6
ISO80XA	304S.S	89.15	76.2	110	178.3
ISO100XA	304S.S	105	101.6	130	210
ISO160XA	304S.S	133.6	152.4	180	267.2

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
