ISO Vacuum Flange 90-Degree Mitered Elbows Fittings

group name: ISO-K Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:18:18 GMT

contact supplier

Paramtents

Product Name ISO Vacuum flange fittings 45 degree elbow
Size ISO63,ISO80,ISO100
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

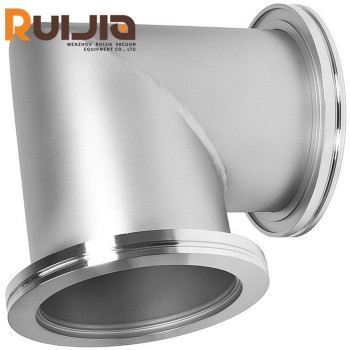

Elbow,Mitered,ISO Type,90 degree. application: high vacuum pipeline system.ISO mitered elbows is made of stainless steel and has a bead-blasted finish.

Detailed

ISO Vacuum Flange 90-Degree Mitered Elbows Fitting feature

advantage

●●Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees.

● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

●Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

ISO Vacuum Flange 90-Degree Mitered Elbows specifications

Product Name	ISO Vacuum flange fittings 90 degree mitered Elbow
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO flange fittings types	ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.

ISO Vacuum Flange 90-Degree Mitered Elbows parameters

ISO Vacuum flange fittings 90 degree mitered Elbow Unit:mm

Model No.	Size	A
ISOK-90MEL-63	ISO63	82.6
ISOK-90MEL-63-1	ISO63-H	87.93
ISOK-90MEL-80	ISO80	88.9
ISOK-90MEL-80-1	ISO80-H	108
ISOK-90MEL-100	ISO100	1049
ISOK-90MEL-100-1	ISO100-H	108
ISOK-90MEL-160	ISO160	138
ISOK-90MEL-160-1	ISO160-H	160.2

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
