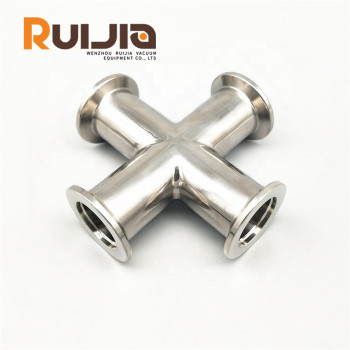

KF Vacuum Flange Fittings 4-Way Crosses

group name: KF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:16:57 GMT

contact supplier

Paramtents

Product Name ISO Vacuum flange fittings 45 degree elbow
Size ISO63,ISO80,ISO100
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

KF 90 degree elbow is used in plumbing, HVAC systems and made from stainless steel,the seal material is from Viton,silicone,Buna-N seal.

Detailed

Vacuum Flange Fittings 4-Way Crosses feature

advantage

●Application areas: Used in industries such as vacuum coating, solar photovoltaics, semiconductor equipment, microelectronics, aerospace, petrochemicals, and vacuum systems.

● Testing methods: including vacuum testing, pressure testing, etc., to verify the sealing and pressure bearing ability of the four-way valve.

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

Vacuum Flange Fittings 4-Way Crosses specifications

Product Name	KF Vacuum flange fittings 4-way Crosses
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

Vacuum Flange Fittings 4-Way Crosses parameters

KF Vacuum flange fittings 4-way Crosses Unit:mm

Model No.	Material	A	B	C	D	Available Area
KF16XA	304S.S	38.3	19.05	30	76.6	U.S.A
KF25XA	304S.S	51.4	25.4	40	102.8	U.S.A
KF40XA	304S.S	61	38.1	55	122	U.S.A
KF50XA	304S.S	80	50.8	75	160	U.S.A
KF16XE	304S.S	40	19.05	30	80	Europe
KF25XE	304S.S	50.8	25.4	40	100	Europe
KF40XE	304S.S	65	38.1	55	130	Europe
KF50XE	304S.S	80	50.8	75	140	Europe

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
