KF Vacuum Flange Fittings 90°Elbows

group name: KF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:14:00 GMT

contact supplier

Paramtents

Product Name KF Vacuum flange fittings 90 degree Elbow
Size KF10,KF25,KF40,KF50
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

KF 90 degree elbow is used in plumbing, HVAC systems and made from stainless steel,the seal material is from Viton,silicone,Buna-N seal.

Detailed

KF Vacuum Flange Fittings 90°Elbows feature

advantage

●Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees

● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

KF Vacuum Flange Fittings 90°Elbows specifications

Product Name	KF Vacuum flange fittings 90 degree Elbow
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

KF Vacuum Flange Fittings 90°Elbows parameters

KF Vacuum flange fittings 90 degree Elbow Unit:mm

Model No.	Material	A	B	C	D	Available Area
KF16EL90A	304S.S	38.3	19.05	30	28.6	U.S.A
KF25EL90A	304S.S	56.2	25.4	40	38.1	U.S.A
KF40EL90A	304S.S	78.4	38.1	55	57.2	U.S.A
KF50EL90A	304S.S	107	50.8	75	76.2	U.S.A
KF16EL90E	304S.S	40	19.05	30	28.6	Europe
KF25EL90E	304S.S	50.8	25.4	40	38.1	Europe
KF40EL90E	304S.S	65	38.1	55	57.2	Europe
KF50EL90E	304S.S	80	50.8	75	76.2	Europe

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface..

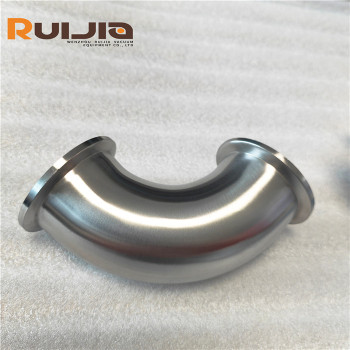

KF Vacuum Flange Fittings 90°Elbows detail

Production Center

Packing & Shipping

Application
