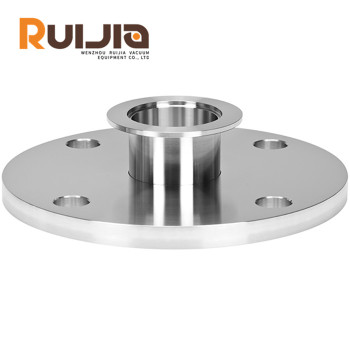

Tubular Adaptor KF to ANSI Flange Adaptor

group name: Vacuum Tubulated Adaptor

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:10:26 GMT

contact supplier

Paramtents

Product Name Vacuum ANSI-KF Tubulated Flange Adaptor
Size ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7K
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

Vacuum flanges adaptor,ANSI to KF tubulated adaptor are mainly used in the field of vacuum technology and are suitable for connecting low, medium, and high vacuum equipment.

Detailed

Tubular Adaptor KF to ANSI Flange Adaptor feature

advantage

●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.

●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.

●Testing:Appearance inspection, size inspection, sealing performance testing

Tubular Adaptor KF to ANSI Flange Adaptor specifications

Product Name	KF Vacuum flange fittings Tees
Product Name	Vacuum ANSI-KF Tubulated Flange Adaptor
Brand	RUIJIA
Size	ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7KA50.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ANSI-KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Tubular Adaptor KF to ANSI Flange Adaptor parameters

Vacuum ANSI-KF Tubulated Flange Adaptor Unit:mm

Model No.	Material	Nominal	A	B	C	D	E	P.C.D
ASA4KA40	304S.S	1	108	55	42	38.1	15.8*4	79.4
ASA4KA50	304S.S	1	108	75	42	50.8	15.8*4	79.4
ASA5KA40	304S.S	1 1/2	127	55	42	38.1	15.8*4	98.4
ASA5KA50	304S.S	1 1/2	127	75	42	50.8	15.8*4	98.4
ASA7KA40	304S.S	3	190.5	55	42	38.1	19*4	152.4
ASA7KA50	304S.S	3	190.5	75	42	50.8	19*4	152.4

Special Sizes Available Upon Request.

Tubular Adaptor KF to ANSI Flange Adaptor detail

Production Center

Packing & Shipping

Application
