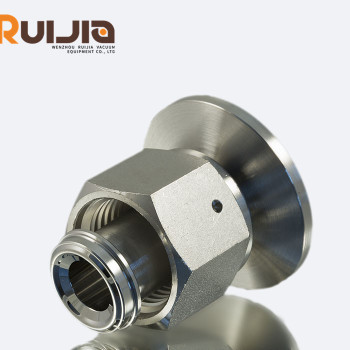

Vacuum KF To VCR Female Adaptor China manufacture

group name: KF to VCR Female Adaptor

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:05:31 GMT

contact supplier

Paramtents

Product Name Vacuum KF to VCR Female Adaptor Flange fittings
Size KF16FVCR6,KF16FVCR13,KF25FVCR6,KF25FVCR13,KF40FVCR
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

Vacuum fittings adaptors,KF-VCR Male adaptors, VCR fittings seal by the compression of a gasket between two highly polished beads on the surfaces of the VCR connectors.

Detailed

Vacuum KF To VCR Female Adaptor feature

advantage

●Application: Used to connect vacuum pipelines,Vacuum Flange and vacuum equipment, such as vacuum pumps and vacuum chambers, suitable for frequent system configuration changes or applications that require cleaning in laboratory and industrial environments.

●Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.

●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification

Vacuum KF To VCR Female Adaptor specifications

Product Name	Vacuum KF to VCR Female Adaptor Flange fittings
Brand	RUIJIA
Size	KF16FVCR6,KF16FVCR13,KF25FVCR6,KF25FVCR13,KF40FVCR6,KF40FVCR13,KF50FVCR6,KF50FVCR13
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF-VCR Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Vacuum KF To VCR Female Adaptor parameters

Vacuum fittings KF swagelok adaptor Unit:mm

Model No.	Material	A	B	C	VCR
KF16FVCR6	304S.S	30	4.4	37	1/4''
KF16FVCR13	304S.S	30	10.4	41.9	1/2''
KF25FVCR6	304S.S	40	4.4	37	1/4''
KF25FVCR13	304S.S	40	10.4	41.9	1/2''
KF40FVCR6	304S.S	55	4.4	37	1/4''
KF40FVCR13	304S.S	55	10.4	41.9	1/2''
KF50FVCR6	304S.S	75	4.4	37	1/4''
KF50FVCR13	304S.S	75	10.4	41.9	1/2''

Special Sizes Available Upon Request.
