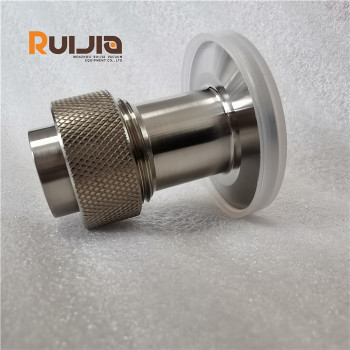

KF-Quick Disconnect Adaptor KF40(NW40)to 1"Compression Tube

group name: KF Quick-Disconnect Adaptor

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 14:00:59 GMT

contact supplier

Paramtents

Product Name Vacuum fittings KF Rubber Hose Adaptor
Size KF10RHA,KF16RHA,KF125RHA,KF40RHA,KF50RHA,
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L

Packging & Delivery

Min Order1 piece

Briefing

KF Adaptors,Quick-Disconnect adaptors is available in various sizes to suit different flange diameters by enabling the connection of various components.

Detailed

KF Quick Disconnect Adaptor feature

advantage

●Application:suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,

●Material: Typically made from materials like ,stainless steel304/316/316l, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.

●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification

KF Quick Disconnect Adaptor specifications

Product Name	Vacuum fittings KF Quick Disconnect adaptor
Brand	RUIJIA
Size	KF16QDA6,KF25QDA3,KF25QDA6,KF25QDA13,KF25QDA19,KF40QDA3,KF40QDA6,KF40QDA13,KF40QDA19.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

KF Quick Disconnect Adaptor parameters

Vacuum fittings KF Quick Disconnect adaptor Unit:mm

Model No.	Material	A	B	C	Tread
KF16QDA6	304S.S	6.5	33.4	30	1/4''
KF16QDA12	304S.S	13	36.5	30	1/2''
KF16QDA19	304S.S	19.3	44.5	30	3/4''
KF25QDA12	304S.S	13	36.5	40	1/2''
KF25QDA19	304S.S	19.3	44.5	40	3/4''
KF25QDA25	304S.S	25.7	50.8	40	1''
KF40QDA12	304S.S	13	36.5	55	1/2''
KF40QDA19	304S.S	19.3	44.5	55	3/4''
KF40QDA25	304S.S	25.7	50.8	55	1''
KF40QDA38	304S.S	38.4	60.3	55	1 1/2''
KF50QDA38	304S.S	38.4	60.3	75	1 1/2''
KF50QDA50	304S.S	51	60.3	75	2''

Special Sizes Available Upon Request.
