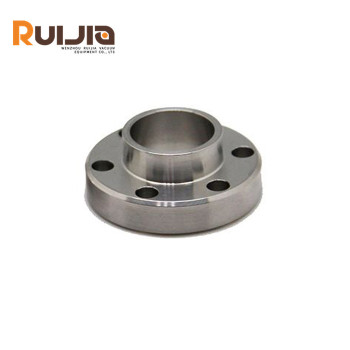

CF Vacuum Flanges Nonrotatable Bored Blank-neck Flanges SS304/SS316 Wholesale
- group name
- CF Vacuum Flanges
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 12 Nov 2024 13:56:21 GMT
Paramtents
Product Name CF Vacuum Nonrotatable Bored Blank-neck Flanges
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Temperature -200~800
Packging & Delivery
-
Min Order1 piece
Briefing
Vacuum bored neck flanges,CF nonrotatable neck flanges,CF16,6.35mmOD,vacuum flanges is applied in fields with high requirements for vacuum degree and sealing performance.
Detailed
CF Vacuum Flanges Nonrotatable Bored Blank-neck Flanges SS304 /SS316 Wholesale feature
● Used in the fields of physics, chemistry, and engineering research.
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Precision machining, durable, high vacuum without side leakage
●CF vacuum flanges come in various sizes and shapes(Nonrotatable blank flange and tapped bolt holes,rotatable blank flange and tapped bolt holes) to accommodate different system configurations.
CF Vacuum Flanges Nonrotatable Bored Blank-neck Flanges SS304 /SS316 Wholesale specifications
|
Product Name
|
CF Vacuum Flanges Nonrotatable Bored Blank-neck Flanges SS304 /SS316 Wholesale
|
||
Brand | RUIJIA | ||
Size | CF16 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF Vacuum flange types
|
CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange
|
||
Product parameters
CF Vacuum Flanges Nonrotatable Bored Blank-neck Flanges SS304 /SS316 Wholesale Unit:mm
| Model No. | Material | A | B |
| CF16B7N | 304SS/316SS | 6.35 | 4.5 |
| CF16B12N | 304SS/316Ss | 12.7 | 9.5 |
| CF16B19N | 304SS/316SS | 19.05 | 16 |
CF Vacuum Nonrotatable -Tapped Bolt Holes blank-neck flanges Unit:mm
| Model No. | Material | A | B |
| CF16B7TAPN | 304SS/316SS | 6.35 | 4.5 |
| CF16B12TAPN | 304SS/316SS | 12.7 | 9.5 |
| CF16B19TAPN | 304SS/316SS | 19.05 | 16 |
CF rotatable blank-neck flange Unit:mm
| Model No. | Material | A | B |
| CR16B7N | 304SS/316SS | 6.35 | 4.5 |
| CR16B12N | 304SS/316SS | 12.7 | 9.5 |
| CR16B19N | 304SS/316SS | 19.05 | 16 |
CF Vacuum rotatable -Tapped Bolt Holes blank-neck flanges Unit:mm
| Model No. | Material | A | B |
| CR16B7TAPN | 304SS | 6.35 | 4.5 |
| CR16B12TAPN | 304SS | 12.7 | 9.5 |
| CR16B19TAPN | 304SS | 19.05 | 16 |
Special Sizes Available Upon Request.
