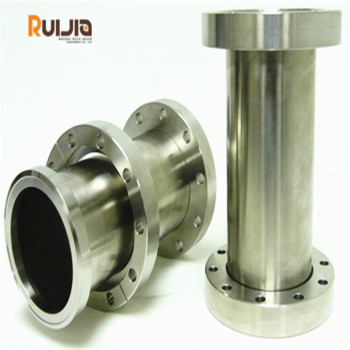

CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Stainless Steel Wholesale
- group name
- CF Vacuum Flanges
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 12 Nov 2024 13:52:53 GMT
Paramtents
Product Name CF NIPPLE Fixed/Non-rotatable
Brand RUIJIA
Size CF16-CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard flange
Packging & Delivery
-
Min Order1 piece
Briefing
Full nipple-fixed,the same size to connect the flange components together.Full nipples use the oxygen free copper to provide a vacuum tight seal.
Detailed
CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale feature
CF vacuum nipple fixed are mainly used in ultra-high vacuum systems,required test before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.
CF Flanges Fittings Half Nipples Vacuum Nipple-Fixed Wholesale specifications
|
Product Name
|
Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale
|
||
Brand | RUIJIA | ||
Size | CF16-CF200 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
Surface | Sand Blasting or Polished Surface | ||
Product parameters
CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale Unit:mm
| Model No. | Material | A | B | C |
| CF16N | S.S.304 | 33.8 | 76 | 19.05 |
| CF35N | S.S.304 | 69.5 | 126 | 38.1 |
| CF63N | S.S.304 | 113.6 | 210 | 63.5 |
| CF100N | S.S.304 | 151.6 | 270 | 101.6 |
| CF150N | S.S.304 | 202.5 | 334 | 152.4 |
| CF200N | S.S.304 | 253.2 | 334 | 203.2 |
Special Sizes Available Upon Request.
