Vacuum Half Nipple-one Flange Rotatable Vacuum CF nipple Flanges Fittings SS304 Wholesale

group name: CF Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 13:47:10 GMT

contact supplier

Paramtents

Brand RUIJIA
Size CF16-CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Packing sealed plastic bag with a protective plastic cap.

Packging & Delivery

Min Order1 piece

Briefing

Vacuum fittings nipples,vacuum flange nipple is used in high vacuum applications.to connect the flange with a copper gasket between them.

Detailed

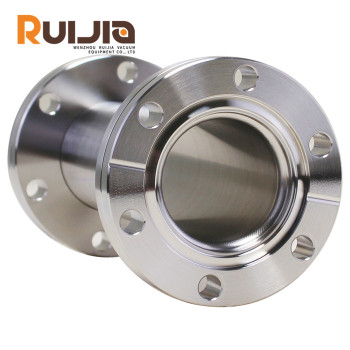

Vacuum Half Nipple-one Flange Rotatable Vacuum CF nipple Flanges Fittings SS304 Wholesale feature

CF vacuum nipple rotatable are mainly used in ultra-high vacuum systems, A series of tests are required before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.

The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.

When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.

Vacuum half nipple-one flanges Rotatable

Vacuum Half Nipple-one Flange Rotatable Vacuum CF nipple Flanges Fittings SS304 Wholesale specifications

Product Name	Vacuum Half Nipple-one Flange Rotatable Vacuum CF nipple Flanges Fittings SS304 Wholesale
Brand	RUIJIA
Size	CF16-CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

Product parameters

Vacuum Half Nipple-one Flange Rotatable Vacuum CF nipple Flanges Fittings SS304 Wholesale Unit:mm

Model No.	Material	A	B	C
CF16NR	S.S.304	33.8	76	19.05
CF35NR	S.S.304	69.5	126	38.1
CF63NR	S.S.304	113.6	210	63.5
CF100NR	S.S.304	151.6	270	101.6
CF150NR	S.S.304	202.5	334	152.4
CF200NR	S.S.304	253.2	334	203.2

Special Sizes Available Upon Request.

Assembly Instructions for CF Flanges

1.Apply a small amount of high temperature anti-seize compound to the bolt threads.

2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.

3. Using clean, lint free gloves, unpack gasket.

4. Place gasket in the knife edege counterbore of nonrotatable flange.

5. Align the mating hole pattern and leak test grooves.

6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.

7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
