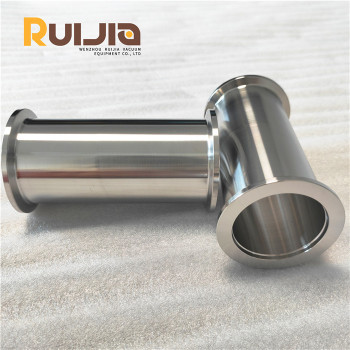

KF Full Nipple Vacuum Flanges Component Fittings Stainless Steel Wholesale China
- group name
- KF/NW Vacuum Flanges
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 12 Nov 2024 13:23:53 GMT
Paramtents
Working Pressure Vacuum~atmosphere pressure
Size KF16-KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard flange
Temperature -200~800℃
Packging & Delivery
-
Min Order1 piece
Briefing
Vacuum fittings full nipple,KF nipple,stainless steel 304,the size range:KF16-KF50.Full nipples application: high vacuum system.
Detailed
KF Full Nipple Vacuum Flanges Component Fittings Stainless Steel Wholesale China feature
●Used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, bio pharmaceuticals, LCD displays, photovoltaics, and solar energy.
●Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
●When assembled and used, KF vacuum nipple are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories.
KF Full Nipple Vacuum Flanges Component Fittings Stainless Steel Wholesale China specifications
|
Product Name
|
KF Full Nipple Vacuum Flanges Component Fittings Stainless Steel Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16-KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Surface
|
Sand Blasting or Polished Surface
|
||
Product parameters
KF Full Nipple Vacuum Flanges Component Fittings Stainless Steel Wholesale China Unit:mm
| Model No. | Material | A | B | C |
| KF16N80 | S.S.304 | 30 | 19.05 | 80 |
| KF25N100 | S.S.304 | 40 | 25.4 | 100 |
| KF40N130 | S.S.304 | 55 | 38.1 | 130 |
| KF50N140 | S.S.304 | 75 | 50.8 | 140 |
Special Sizes Available Upon Request.
Production Center
Application
Applications for this system are as varied as the imagination can make them.
Some examples are:
*Roughing and foreline plumbing for large vacuum system.
*High vacuum, high conductance, inter-connections.
*Modular system which will be modified frequently.
*System requiring frequent cleaning.
*Experimental system in research laboratories.
