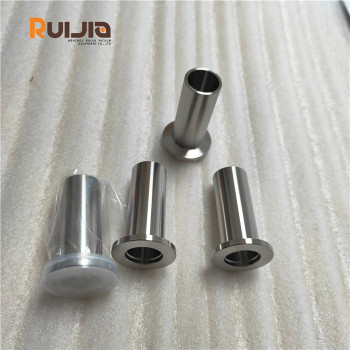

KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China

group name: KF/NW Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 13:17:39 GMT

contact supplier

Paramtents

Size KF16-KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Half nipples,KF,long,is a convenient joint for quickly connecting vacuum pipelines, KF half nipples usually made of stainless steel 304 material. The specifications of KF vacuum nipples include KF10, KF16, KF25, KF40, KF50, etc.

Detailed

KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China feature

● Mainly used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, biopharmaceuticals, LCD displays, photovoltaics, and solar energy. and KF vacuum interfaces have become an important choice in these fields due to their precise size, simple structure, and compact advantages.

●Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.

●When assembled and used, KF vacuum joints are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories. They can also be used in conjunction with vacuum valves, vacuum tees, vacuum elbows, etc.

KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China specifications

Product Name	KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China
Brand	RUIJIA
Size	KF16-KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

Product parameters

KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China Unit:mm

Model No.	Material	A	B	C	Available Area
KF10LHNSA	S.S.304	30	12.7	40	U.S.A
KF16LHNSA	S.S.304	30	19.05	40	U.S.A
KF25LHNSA	S.S.304	40	25.4	40	U.S.A
KF40LHNSA	S.S.304	55	38.1	40	U.S.A
KF50LHNSA	S.S.304	75	50.8	40	U.S.A

KF10LHNAA	S.S.304	30	12.7	40	U.S.A
KF16LHNAA	S.S.304	30	19.05	40	U.S.A
KF25LHNAA	S.S.304	40	25.4	40	U.S.A
KF40LHNAA	S.S.304	55	38.1	40	U.S.A
KF50LHNAA	S.S.304	75	50.8	40	U.S.A

KF10LHNSE	S.S.304	30	14	70	Europe
KF16LHNSE	S.S.304	30	20	70	Europe
KF25LHNSE	S.S.304	40	28	70	Europe
KF40LHNSE	S.S.304	55	45	70	Europe
KF50LHNSE	S.S.304	75	57	70	Europe

KF50LHNSJ	S.S.304	75	60.5	40	Japan

Special Sizes Available Upon Request.

Production Center

Application

Applications for this system are as varied as the imagination can make them.

Some examples are:

*Roughing and foreline plumbing for large vacuum system.

*High vacuum, high conductance, inter-connections.

*Modular system which will be modified frequently.

*System requiring frequent cleaning.

*Experimental system in research laboratories.
