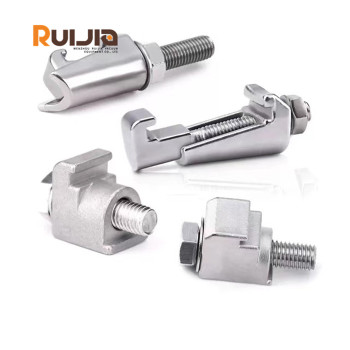

ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China

group name: ISO-K Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 12:19:10 GMT

contact supplier

Paramtents

Size ISO63,ISO160,ISO320.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard ISO Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum clamp,single wall,ISO,material: SS304/SS316,Temperature:-200~800℃.ISO single wall clamps is a type of vacuum fitting designed for use in systems requiring a high level of cleanliness and integrity.

Detailed

ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China feature

●Used in semiconductor manufacturing, national defense research etc.

●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

● The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China specifications

Product Name	ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China
Brand	RUIJIA
Size	ISO63,ISO160,ISO320.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum clamp types	ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.

Product parameters

ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China Unit:mm

Model No.	Material	A	B	C	Fit Flange
ISO63-100SWC304	S.S. 304	M8	35	23	ISO63
					ISO80
					ISO100
ISO160-250SWC304	S.S. 304	M10	35	23	ISO160
					ISO200
					ISO250
ISO320-500SWC304	S.S.304	M12	50	30	ISO320
					ISO400
					ISO500
ISO63-100SWC-ZP	Steel+Zn Plated	M8	35	23	ISO63
					ISO80
					ISO100
ISO160-250SWC-ZP	Steel+Zn Plated	M10	35	23	ISO160
					ISO200
					ISO250
ISO320-500SWC-ZP	Steel+Zn Plated	M12	50	30	ISO320
					ISO400
					ISO500

Special Sizes Available Upon Request.
