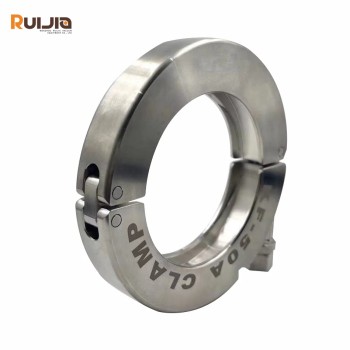

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China

group name: KF Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 09:46:17 GMT

contact supplier

Paramtents

Size KF16,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

Flange clamps,KF,Vacuum quick loading clamps is used in combination with vacuum Flange,vacuum valves,vacuum fittings to meet different customer needs and achieve ideal results.

Detailed

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China feature

●Used in high-tech industries such as semiconductor manufacturing,national defense research,aerospace,bio pharmaceutical,LCD,etc.

●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.

●the Size is from KF16-KF50,if you need other size,we can provide according to your request.

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China specifications

Product Name	KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50.
Material	SS304, SS316L, 6061T6 Alu
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

Product parameters

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China Unit:mm

Size	Material	A	B	C
KF16	SS304	22.3	63.3	17.3
KF25	SS304	32.3	63.3	17.3
KF40	SS304	46.5	83.5	17.3
KF50	SS304	67.5	104.3	17.3

Special Sizes Available Upon Request.
