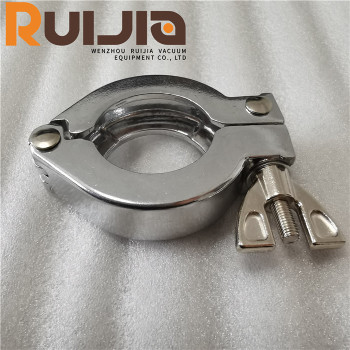

KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China

group name: KF Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 12 Nov 2024 15:27:38 GMT

contact supplier

Paramtents

Size KF10,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

KF clamps,aluminium,sinlge pin clamp refers to a design where only one pin is required to secure the clamp around a pipe or other object.

Detailed

KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China feature

●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..

● Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale

● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.

KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China specifications

Product Name	KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

Product parameters

KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China Unit:mm

Model No.	Material	A	B	C	Surface Treatment
KF16CLA	Aluminum	63	42.5	16
KF25CLA	Aluminum	72	54	16
KF40CLA	Aluminum	90	70	16
KF50CLA	Aluminum	114	90	20

KF16CLA-NP	Aluminum	63	42.5	16	Nickle Plating
KF25CLA-NP	Aluminum	72	54	16	Nickle Plating
KF40CLA-NP	Aluminum	90	70	16	Nickle Plating
KF50CLA-NP	Aluminum	114	90	20	Nickle Plating

Special Sizes Available Upon Request.
