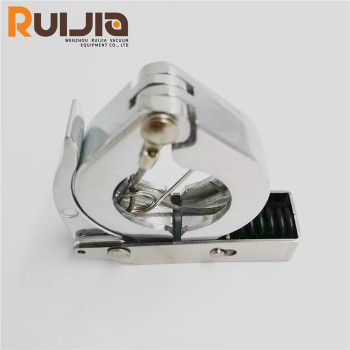

KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat

group name: KF Vacuum Clamps

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 04 Nov 2024 08:57:18 GMT

contact supplier

Paramtents

Size KF10,KF25,KF40,KF50
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.

Packging & Delivery

Min Order1 piece

Briefing

KF lock clamps,Vacuum toggle clamps with lock is then tightened around the vacuum line or fitting, securing it in place while maintaining an airtight seal. Self-adjusting Clamp With Manual Over Tightening.

Detailed

KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat Feature

●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..

●Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel or aluminium.

●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.

KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat. Specifications

Product Name	KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat.
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

Product parameters

KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat. Unit:mm

Model No.	Material	A	B	C	D	E
KF16TCLA	Aluminum	66	97	20	63	43
KF25TCLA	Aluminum	75	106	20	74	43
KF40TCLA	Aluminum	85	123	20	90	43
KF50TCLA	Aluminum	118	165	20	115	43

Special Sizes Available Upon Request.
