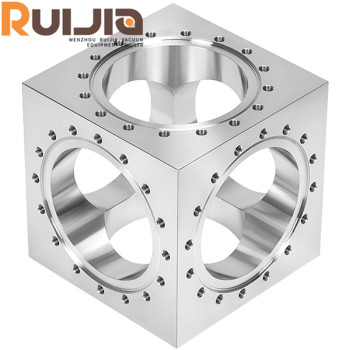

CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China

group name: CF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 04 Nov 2024 09:52:30 GMT

contact supplier

Paramtents

Size CF16,CF35,CF50,CF63,CF100,CF150,CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

CF cubes,CF vacuum cubes fittings,with fractional thread has good sealing and stability in ultra-high vacuum environments, meeting the needs of various applications.

Detailed

CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Feature

●Applied to various occasions that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, etc

●Thread Type: Fractional Thread, the thread size have 8-32,250-28,312-24.

●Test:Cleanliness testing, packaging environment testing, pressure testing, temperature testing

CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Specifications

Product Name	CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China
Brand	RUIJIA
Size	CF16,CF35,CF50,CF63,CF100,CF150,CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Unit:mm

Model No.	Flange Size	Material	A	B	Thread Size	Thread Depth
CF16CUF	CF16	304S.S	17.25	15.7	8-32	6.35
CF35CUF	CF35	304S.S	35.05	38.1	250-28	9.4
CF50CUF	CF50	304S.S	43	50.8	312-24	9.4
CF63CUF	CF63	304S.S	56.65	63.5	312-24	12.7
CF100CUF	CF100	304S.S	76.2	102	312-24	12.7
CF150CUF	CF150	304S.S	101.6	152.4	312-24	12.7
CF200CUF	CF200	304S.S	127	203.2	312-24	12.7

Special Sizes Available Upon Request.
