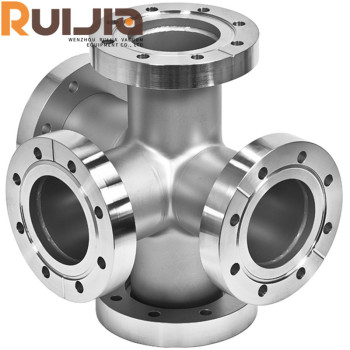

CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China

group name: CF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 04 Nov 2024 13:29:41 GMT

contact supplier

Paramtents

Size CF16,CF35,CF63,CF100,CF150
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.

Packging & Delivery

Min Order1 piece

Briefing

CF five way crosses,vacuum fittings rotatable is mainly suitable for ultra-high vacuum systems, ensuring sealing effect through metal sealing, available size to accommodate vacuum pipes of different diameters.

Detailed

CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China feature

●Mainly used in ultra-high vacuum systems. The connection method of 5 way crosses-fixed is suitable for applications that require high temperature baking. Its nominal diameter sizes include CF16, CF35, CF63, CF100, CF150..

●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation

●High pressure system air tightness, low pressure system air tightness testing, quantitative oxygen supply, exhaust pressure testing, and automatic supply pressure testing, etc

CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China specifications

Product Name	CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China Unit:mm

Model No.	Material	A	B	C	D
CR16FXA	304S.S	47.2	19.05	33.8	94.4
CR35FXA	304S.S	62.5	38.1	69.5	125
CR63FXA	304S.S	85.7	63.5	113.6	171.4
CR100FXA	304S.S	109.5	101.6	151.6	219
CR150FXA	304S.S	139.7	152.4	202.5	279.4

Special Sizes Available Upon Request.
