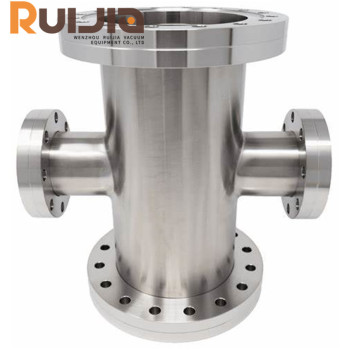

CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture

group name: CF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 04 Nov 2024 14:36:27 GMT

contact supplier

Paramtents

Size CF-RT-275×133,CF-RT-275×212,CF-RT-338×133,etc
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packing sealed plastic bag with a protective plastic cap.

Packging & Delivery

Min Order1 piece

Briefing

CF reducing 4 way crosses are a type of connector used in high vacuum system, featuring a rotatable elbow design that makes the connection more flexible and convenient.

Detailed

CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture feature

●This type of accessory has a wide range of applications, including but not limited to scientific research, industrial production, laboratory equipment, and other fields.

●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation

●Testing:Appearance inspection, size inspection, sealing performance testing

●Finish:polish surface or sand blasting surface.

CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture specifications

Product Name	CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture
Brand	RUIJIA
Size	CF-RT-275×133,CF-RT-275×212,CF-RT-338×133,etc
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture Unit:mm

Model No.	Flange Size	A	B
CF-RT-275×133	CF 2.75''/1.33''	62.5	47.5
CF-RT-275×212	CF2.75''/2.12''	62.5	58.2
CF-RT-338×133	CF3.38''/1.33''	81.8	54.1
CF-RT-338×275	CF3.38''/2.75''	81.8	68.8
CF-RT-450×275	CF4.5''/2.75''	85.9	75.2
CF-RT-450×338	CF4.5''/3.38''	85.9	88.4
CF-RT-462×338	CF4.62''/3.8''	89.7	94.7
CF-RT-462×450	CF4.62''/4.5''	89.7	92.2
CF-RT-600×275	CF6.00''/2.75''	109.7	94.2
CF-RT-600×338	CF6.00''/3.38''	109.7	107.4
CF-RT-600×450	CF6.00''/4.5''	109.7	104.9
CF-RT-600×462	CF6.00''/4.62''	109.7	104.9

Special Sizes Available Upon Request.
