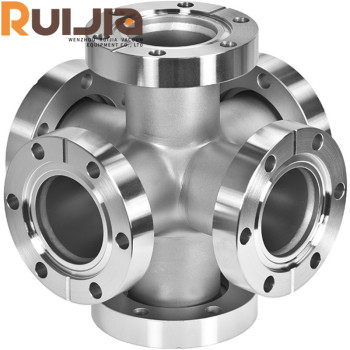

CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China
- group name
- CF Vacuum Fittings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Mon, 04 Nov 2024 15:01:04 GMT
Paramtents
Size CF16,CF35,CF63,CF100,CF150
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
CF vacuum fixed fittings,6-way crosses to create a stable high vacuum environment, reducing preparation time and thus improving work efficiency.
Detailed
CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China feature
●Mainly used for multi-channel and multi-purpose sealed connections in ultra-high vacuum systems
●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used .
●Test:High pressure system air tightness, low pressure system air tightness testing, quantitative oxygen supply, exhaust pressure testing
●Finish:polish surface or sand blasting surface.
CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China specifications
|
Product Name
|
CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flanges Fittings & Component 6-way Crosses Fixed Fittings China Unit:mm
| Model No. | Material | A | B | C | D |
| CF16SXA | 304S.S | 37.5 | 19.05 | 33.8 | 75 |
| CF35SXA | 304S.S | 62.5 | 38.1 | 69.5 | 125 |
| CF63SXA | 304S.S | 85.7 | 63.5 | 113.6 | 171.4 |
| CF100SXA | 304S.S | 109.5 | 101.6 | 151.6 | 219 |
| CF150SXA | 304S.S | 139.7 | 152.4 | 202.5 | 279.4 |
Special Sizes Available Upon Request.
