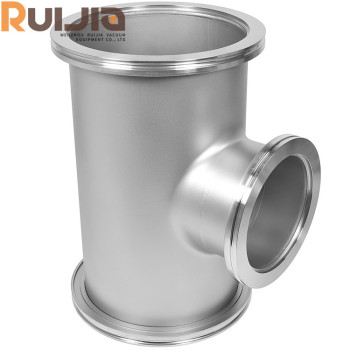

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China

group name: ISO-K Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 05 Nov 2024 13:51:31 GMT

contact supplier

Paramtents

Size ISO63,ISO80,ISO100,ISO160
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum Fittings Crosses includes four-way,five-way,six-way,reducing crosses to change size within the connector flanges.

Detailed

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Feature

●Application：Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.

●Finish:polish surface or sand blasting surface.

●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Specifications

Product Name	ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO flange fittings types	ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.

Product parameters

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Unit:mm

Model No.	Size	A	B
ISOK-RT-80×63	ISO80×ISO63	177.7	88.9
ISOK-RT-100×63	ISO100×ISO63	209.7	101.6
ISOK-RT-100×80	ISO100×ISO80	209.7	101.6
ISOK-RT-160×63	ISO160×ISO63	266.6	126.9
ISOK-RT-160×80	ISO160×ISO80	266.6	126.9
ISOK-RT-160×100	ISO160×ISO100	266.6	130.3

Special Sizes Available Upon Request.
