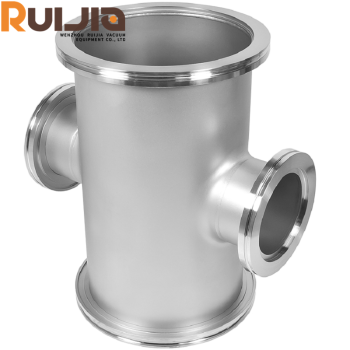

ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings Reducing 4-Way Crosses Wholesale China
- group name
- ISO-K Vacuum Fittings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 05 Nov 2024 14:12:51 GMT
Paramtents
Size ISO63,ISO80,ISO100,ISO160
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
ISO fittings,ISO reducer crosses is made from stainless steel and the fittings size rangs is from ISO63 to ISO160. Working Pressure:Vacuum~atmosphere pressure.
Detailed
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings Reducing 4-Way Crosses Wholesale China Feature
●Application ：application areas include but are not limited to scientific research, semiconductor manufacturing, and other industrial fields that require high purity and high vacuum.
●Finish:polish surface or sand blasting surface.
●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings Reducing 4-Way Crosses Wholesale China Specifications
|
Product Name
|
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings Reducing 4-Way Crosses Wholesale China
|
||
Brand | RUIJIA | ||
Size | ISO63,ISO80,ISO100,ISO160 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO flange fittings types
|
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.
|
||
Product parameters
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings Reducing 4-Way Crosses Wholesale China Unit:mm
| Model No. | Size | A | B |
| ISOK-4RC-80×63 | ISO80×ISO63 | 177.7 | 88.85 |
| ISOK-4RC-100×63 | ISO100×ISO63 | 209.7 | 101.55 |
| ISOK-4RC-100×80 | ISO100×ISO80 | 209.7 | 101.55 |
| ISOK-4RC-160×63 | ISO160×ISO63 | 266.6 | 126.95 |
| ISOK-4RC-160×80 | ISO160×ISO6380 | 266.6 | 126.95 |
| ISOK-4RC-160×100 | ISO160×ISO100 | 266.6 | 130.25 |
Special Sizes Available Upon Request.
