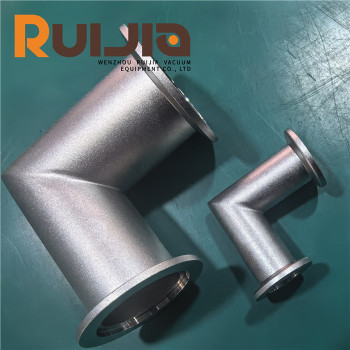

KF Vacuum Flange Fittings,Stainless Steel 90°Mitered Elbows Wholesale China
- group name
- KF Vacuum Fittings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Tue, 05 Nov 2024 15:14:27 GMT
Paramtents
Size KF10,KF25,KF40
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
-
Min Order1 piece
Briefing
Vacuum Elbow,KF Type,90 degree mitered elbow is particularly useful in creating efficient and compact configurations for UHV systems.
Detailed
KF Vacuum Flange Fittings,Stainless Steel 90°Mitered Elbows Wholesale China feature
●Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees
● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
● Pressure rating: Verify that the elbow can withstand the expected pressures and vacuum levels in your application..
●Finish:polished surface or sand blasting surface.
KF Vacuum Flange Fittings,Stainless Steel 90°Mitered Elbows Wholesale China specifications
|
Product Name
|
KF Vacuum Flange Fittings,Stainless Steel 90°Mitered Elbows Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF10,KF25,KF40 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF flange fittings types
|
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.
|
||
Product parameters
KF Vacuum Flange Fittings,Stainless Steel 90°Mitered Elbows Wholesale China Unit:mm
| Model No. | Material | A | B | C | D | Available Area |
| KF16EL90S | SS304 | 40 | 16 | 30 | 21 | Europe |
| KF25EL90S | SS304 | 50 | 25 | 40 | 31 | Europe |
| KF40EL90S | SS304 | 65 | 39 | 55 | 45 | Europe |
Special Sizes Available Upon Request.
