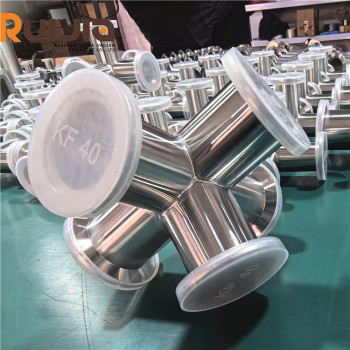

KF Vacuum Five-Way Crosses Vacuum Stainless Steel Flange Fittings Wholesale China

group name: KF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 06 Nov 2024 08:53:24 GMT

contact supplier

Paramtents

Size KF10,KF25,KF40,KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

KF 5-way cross is applied in various industrial fields, including semiconductor manufacturing, biopharmaceuticals, food processing and require extremely high cleanliness and sealing.

Detailed

KF Vacuum Five-Way Crosses Vacuum Stainless Steel Flange Fittings Wholesale China feature

●Mainly used for connection, control, direction change, diversion, sealing, and support to ensure the normal operation of pipeline systems.

● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

●Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.

KF Vacuum Five-Way Crosses Vacuum Stainless Steel Flange Fittings Wholesale China specifications

Product Name	KF Vacuum Five-Way Crosses Vacuum Stainless Steel Flange Fittings Wholesale China
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

Product parameters

KF Vacuum Five-Way Crosses Vacuum Stainless Steel Flange Fittings Wholesale China Unit:mm

Model No.	Material	A	B	C	D
KF16FXA	304S.S	38.3	19.05	30	76.6
KF25FXA	304S.S	51.4	25.4	40	102.8
KF40FXA	304S.S	61	38.1	55	122
KF50FXA	304S.S	80	50.8	75	160

Special Sizes Available Upon Request.
