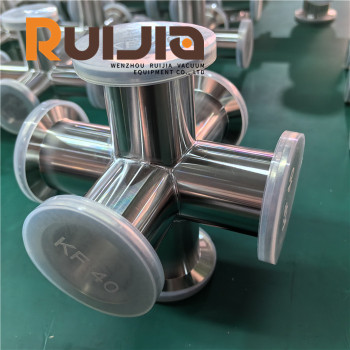

KF Six-Way Crosses Vacuum Stainless Steel Flange Component & Fittings Wholesale China

group name: KF Vacuum Fittings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 06 Nov 2024 09:09:51 GMT

contact supplier

Paramtents

Size KF16,KF25,KF40,KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum fittings,6-way crosses,KF fittings use a small-sized quick fit flange joint design with six interfaces and which can easily connect multiple pipelines and achieve complex pipeline layout and system design.

Detailed

KF Six-Way Crosses Vacuum Stainless Steel Flange Component & Fittings Wholesale China feature

●Application field: Mainly used to prevent impurities from adhering to pipes in a molten state, achieving pipe sizing and cooling through vacuum holes on vacuum pipelines.

● Testing: the six way crosses correctly switch the fluid flow direction; Performance testing checks whether the performance indicators of the components meet the specified requirements, such as the sizing accuracy and cooling efficiency of the vacuum pipe sizing device

● Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

KF Six-Way Crosses Vacuum Stainless Steel Flange Component & Fittings Wholesale China specifications

Product Name	KF Six-Way Crosses Vacuum Stainless Steel Flange Component & Fittings Wholesale China
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

Product parameters

KF Six-Way Crosses Vacuum Stainless Steel Flange Component & Fittings Wholesale China Unit:mm

Model No.	Material	A	B	C	D
KF16SXA	304S.S	38.3	19.05	30	76.6
KF25SXA	304S.S	51.4	25.4	40	102.8
KF40SXA	304S.S	61	38.1	55	122
KF50SXA	304S.S	80	50.8	75	160

Special Sizes Available Upon Request.
