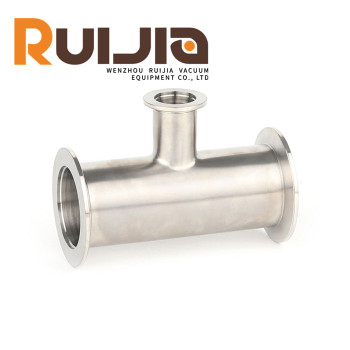

KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China
- group name
- KF Vacuum Fittings
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 06 Nov 2024 09:25:40 GMT
Paramtents
Size KF25,KF40,KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing
KF reducing Tees,KF Fittings Tees,resistance to corrosion, impact, freezing and aging. lightweight, easy to connect, has low resistance, and strong wear resistance.
Detailed
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China Feature
●Application areas: Used in various industries, including but not limited to the construction and maintenance of engineering projects in industries such as petrochemicals, petroleum and natural gas, liquefied gas, fertilizers, power plants, nuclear power,shipbuilding,pharmaceuticals, food hygiene, and urban construction.
● Packaging: shockproof packaging, dust-proof packaging, etc., to ensure that the product remains in good condition when it reaches the user's hands
● Testing: Appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, static pressure testing, burst testing, as well as sealing and corrosion resistance testing.
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China specifications
|
Product Name
|
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF25,KF40,KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF flange fittings types
|
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.
|
||
Product parameters
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China Unit:mm
| Model No. | Material | A | B | C | D | E | F | Available Area |
| KF25UT16A | 304S.S | 52 | 37.5 | 40 | 30 | 25.4 | 19.05 | U.S.A |
| KF40UT16A | 304S.S | 61 | 52 | 55 | 30 | 38.1 | 19.05 | U.S.A |
| KF40UT25A | 304S.S | 61 | 57.8 | 55 | 40 | 38.1 | 25.4 | U.S.A |
| KF50UT16A | 304S.S | 80 | 58.2 | 75 | 30 | 50.8 | 19.05 | U.S.A |
| KF50UT25A | 304S.S | 80 | 64.1 | 75 | 40 | 50.8 | 25.4 | U.S.A |
| KF50UT40A | 304S.S | 80 | 67.3 | 75 | 55 | 50.8 | 38.1 | U.S.A |
| Model No. | Material | A | B | C | D | E | F | Available Area |
| KF25UT16E | 304S.S | 52 | 40 | 40 | 30 | 25.4 | 19.05 | Europe |
| KF40UT16E | 304S.S | 65 | 40 | 55 | 30 | 38.1 | 19.05 | Europe |
| KF40UT25E | 304S.S | 65 | 50 | 55 | 40 | 38.1 | 25.4 | Europe |
| KF50UT16E | 304S.S | 70 | 50 | 75 | 30 | 50.8 | 19.05 | Europe |
| KF50UT25E | 304S.S | 70 | 65 | 75 | 40 | 50.8 | 25.4 | Europe |
| KF50UT40E | 304S.S | 70 | 65 | 75 | 55 | 50.8 | 38.1 | Europe |
Special Sizes Available Upon Request.
