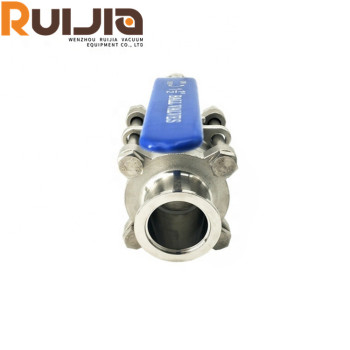

KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China

group name: Vacuum Ball Valves

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Wed, 06 Nov 2024 10:01:51 GMT

contact supplier

Paramtents

Size KF10-KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

KF Vacuum valves,Quick-loading,three pieces,Ball valves is made out of stainless steel and used to connect or cut off the flow of media in vacuum system pipelines.

Detailed

KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Feature

●Application: Vacuum ball valves are used to control the flow of media, ensuring the vacuum degree and work efficiency of the system.

●Size:the size and specifications of ball valves include nominal diameter (DN), external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.

●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions

KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Specifications

Product Name	KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China
Brand	RUIJIA
Size	KF10-KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Unit:mm

Size	D	Dn	L	K	H
KF10	30	9.4	89	130	38
KF16	30	15.8	92	130	42.5
KF25	40	22.1	107	165	52.5
KF40	55	34.8	130	215	73
KF50	75	47.5	151	215	78.5

Special Sizes Available Upon Request.
