KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China
- group name
- Vacuum Angle valves
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 06 Nov 2024 13:55:47 GMT
Paramtents
Size KF16,KF25,KF40,KF50,KF63,KF80.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
-
Min Order1 piece
Briefing

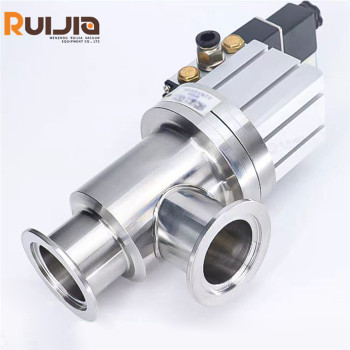

KF Angle Valves,Pneumatic actuator,Size range:KF16-KF80.Seal material:Viton,Silicone,Buna-N seal.Valves material:SS304/SS316.
Detailed
KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China feature
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:Depending on specific application requirements and design specifications
●Pneumatic Angle valve series:Pneumatic L-type angle valves,Pneumatic T-type angle valves ,Pneumatic Y-type angle valve and Pneumatic Z-type angle valves.
Working condition: operating mode is pneumatic actuated and Gas source pressure:0.4-0.8Mpa.
KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China specifications
|
Product Name
|
KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50,KF63,KF80. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
