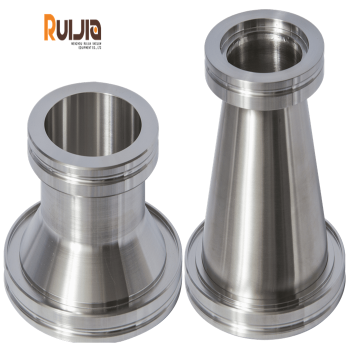

Stainless Steel Vacuum Flange Fittings,ISO-ISO Conical Reducing Adaptor Fittings Wholesale
- group name
- Vacuum Reducing Adaptor
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Thu, 07 Nov 2024 11:35:58 GMT
Paramtents
Size ISO80RA63,ISO100RA63,ISO80RA80,ISO100RA80.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO-ISO Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
-
Min Order1 piece
Briefing
ISO to ISO Adaptor Conical Reductor,Adaptor Size:ISO80*ISO63,ISO100*ISO63,ISO80*ISO80,ISO100*ISO80.Fittings Material:stainless steel.
Detailed
Stainless Steel Vacuum Flange Fittings,ISO-ISO Conical Reducing Adaptor Fittings Wholesale Feature
●Application:Used to connect vacuum interfaces of different sizes, allowing conversion from ISO interface to KF interface, suitable for stainless steel connections in vacuum systems
●Material: Typically made from materials like ,stainless steel304/316/316L. these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
●Packaging: Sealed packaging is usually used to ensure that its quality and performance are not affected during transportation and storage
Stainless Steel Vacuum Flange Fittings,ISO-ISO Conical Reducing Adaptor Fittings Wholesale Specifications
|
Product Name
|
Stainless Steel Vacuum Flange Fittings,ISO-ISO Conical Reducing Adaptor Fittings Wholesale
|
||
Brand | RUIJIA | ||
Size | ISO80RA63,ISO100RA63,ISO80RA80,ISO100RA80. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO-ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Stainless Steel Vacuum Flange Fittings,ISO-ISO Conical Reducing Adaptor Fittings Wholesale Unit:mm
| Model No. | Material | A | B | C |
| ISO80RA63 | 304S.S | 110 | 95 | 63 |
| ISO100RA63 | 304S.S | 130 | 95 | 63 |
| ISO80RA80 | 304S.S | 110 | 110 | 63 |
| ISO100RA80 | 304S.S | 130 | 95 | 63 |
Special Sizes Available Upon Request.
