Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale

group name: Vacuum Reducing Adaptor

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Thu, 07 Nov 2024 13:42:10 GMT

contact supplier

Paramtents

Size ISO80KRA40,ISO100KRA40,ISO80KRA50,ISO100KRA50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO-KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

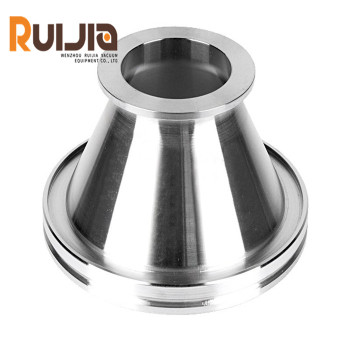

Vacuum conical reducer adaptor,ISO to KF conical reducing adaptor to connect different size different standard flange.which is ISO flange on one end and KF flange on the other.

Detailed

Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale Feature

●Application:Used to connect vacuum interfaces of different sizes, allowing conversion from ISO interface to KF interface, suitable for stainless steel connections in vacuum systems

●Material: Typically made from materials like ,stainless steel304/316/316L, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.

●Packaging: Sealed packaging is usually used to ensure that its quality and performance are not affected during transportation and storage

Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale Specifications

Product Name	Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale
Brand	RUIJIA
Size	ISO80KRA40,ISO100KRA40,ISO80KRA50,ISO100KRA50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO-KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Product parameters

Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesal Unit:mm

Model No.	Material	A	B	C
ISO80KRA40	304S.S	110	55	63
ISO100KRA40	304S.S	130	55	63
ISO80KRA50	304S.S	110	75	63
ISO100KRA50	304S.S	130	75	63

Special Sizes Available Upon Request.
