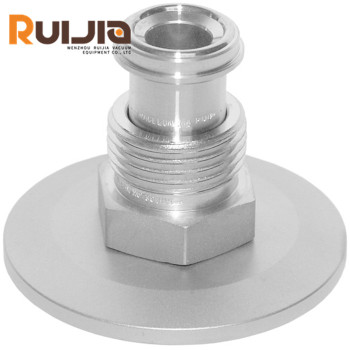

304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture

group name: KF to VCR Male Adaptor

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Fri, 08 Nov 2024 09:29:38 GMT

contact supplier

Paramtents

Size KF16MVCR6,KF16MVCR13,KF25MVCR6,KF25MVCR13,KF40MVCR
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF-VCR Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

Male adaptors,KF-VCR adaptors is suitable for medium to low vacuum systems and suitable for temperature ranges from -200℃ to 800℃.

Detailed

304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture Feature

●Application: Used to connect vacuum pipelines,Vacuum Flange and vacuum equipment, such as vacuum pumps and vacuum chambers, suitable for frequent system configuration changes or applications that require cleaning in laboratory and industrial environments.

●Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.

●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing.

304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture Specifications

Product Name	304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture
Brand	RUIJIA
Size	KF16MVCR6,KF16MVCR13,KF25MVCR6,KF25MVCR13,KF40MVCR6,KF40MVCR13,KF50MVCR6,KF50MVCR13
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF-VCR Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Product parameters

304.S.S Vacuum Flange KF to VCR Male Adaptor Fittings China manufacture Unit:mm

Model No.	Material	A	B	C	VCR
KF16MVCR6	304S.S	30	4.4	37	1/4''
KF16MVCR13	304S.S	30	10.4	41.9	1/2''
KF25MVCR6	304S.S	40	4.4	37	1/4''
KF25MVCR13	304S.S	40	10.4	41.9	1/2''
KF40MVCR6	304S.S	55	4.4	37	1/4''
KF40MVCR13	304S.S	55	10.4	41.9	1/2''
KF50MVCR6	304S.S	75	4.4	37	1/4''
KF50MVCR13	304S.S	75	10.4	41.9	1/2''

Special Sizes Available Upon Request.
