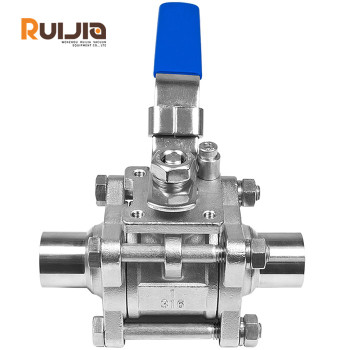

304.S.S.Vacuum Ball Valves Welded Manual 3-Pieces for Vacuum System.

group name: Vacuum Ball Valves

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Fri, 08 Nov 2024 11:30:00 GMT

contact supplier

Paramtents

Size 1/2’’-4’’,DN10-DN100
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum ball valves,manual, welded, excellent performance,low fluid resistance, good sealing performance, and simple and convenient operation.

Detailed

304.S.S.Vacuum Ball Valves Welded Manual 3-Pieces for Vacuum System Feature

●Application:Applied in industrial fields such as chemical, petroleum, metallurgy, water heating, food, and pharmaceuticals.

●Size:The specification range is wide, from DN10 to DN100,1/2"-4" to meet the needs of pipes with different diameters.

●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions.

304.S.S.Vacuum Ball Valves Welded Manual 3-Pieces for Vacuum System Specifications

Product Name	304.S.S.Vacuum Ball Valves Welded Manual 3-Pieces for Vacuum System.
Brand	RUIJIA
Size	1/2"-4",DN10-DN100
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

304.S.S.Vacuum Ball Valves Welded Manual 3-Pieces for Vacuum System. Unit:mm

Size	D	T	L	H	H1	K
1/2''	12.7	1.24	135	38	68	130
3/4''	19.05	1.65	135	42.5	72.5	130
1''	25.4	1.65	162	52.5	86.5	165
1-1/4''	31.8	1.65	157	58.5	99.5	165
1-1/2''	38.1	1.65	200	73	116.5	215
2''	50.8	1.65	214	78.5	122	215
2-1/2''	63.5	1.65	254	95	138.5	215
3''	76.2	1.65	280	110.5	157.5	320
4''	101.6	2.11	306	122.5	169.5	320

Special Sizes Available Upon Request.
